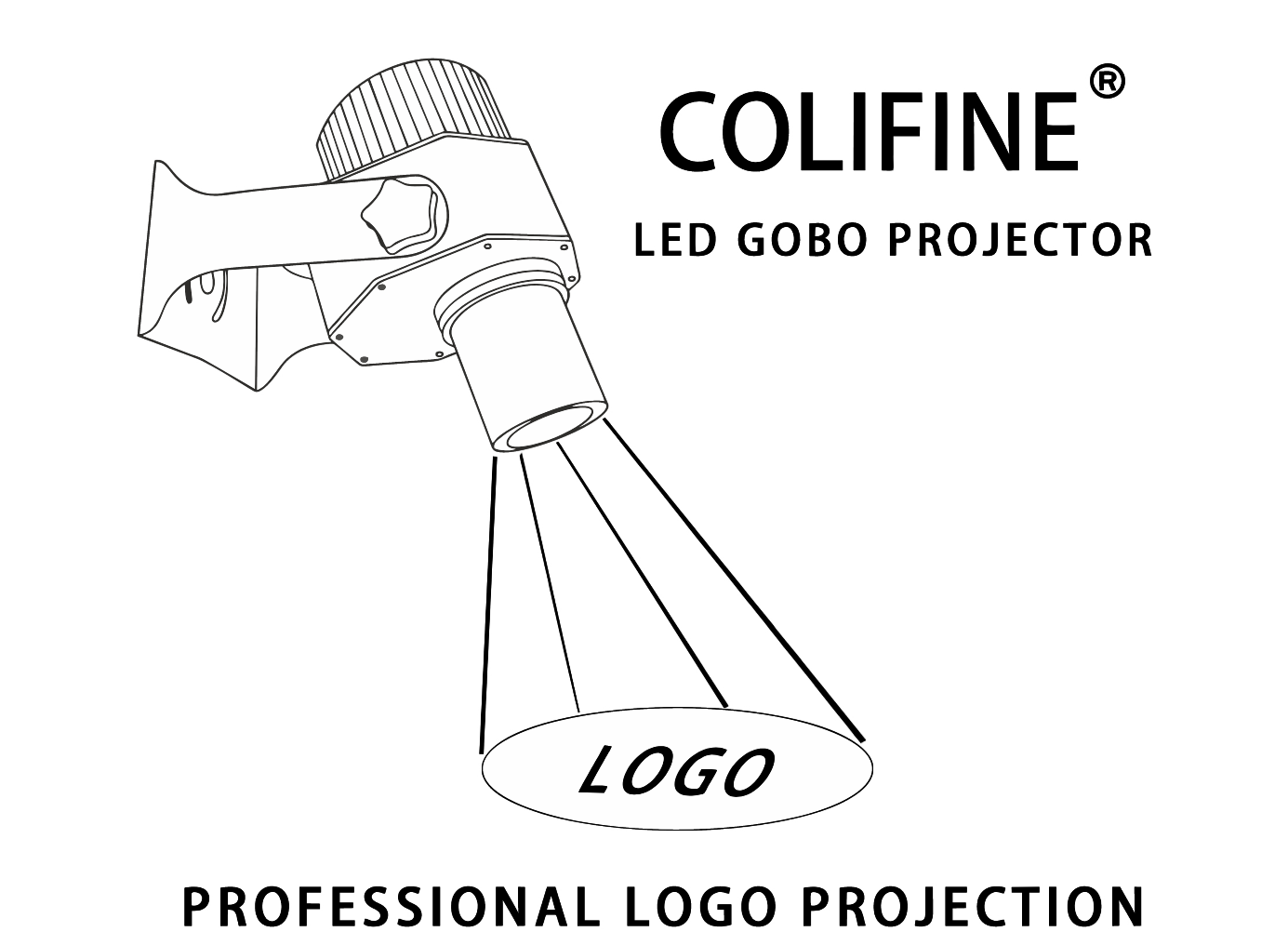

How To Install The Gobo Projector and use the logo projector light

How To Install The Gobo Projector and use the logo projector light

1.CONNECTION MODE

Yellow wire:Theneutral wire.

Brown/Blue wire: Regardless of positive and negative pole

2.INSTALLATION MODE-THE GOBO GLASS LENS

• Take off the lens.

• Take off the circlip.

• Change the gobo carefullywith theright side towards theinside.(The logo on the frontfaces down)

3.LOGO PROJECTOR INSTALLATION

• lnsert the explosive screws into the wall screw holes

• Connect the base of the machine to the screw and screw on the nut

4.INSTALLATION MODE-THE GOBO PROJECTOR

• Fix the metal bottom on the wall,and turn the projector to the right direction.

• Rotate the lens to get a clear picture,then fasten theiron ring to compact the rubber ring to assure-water resistance.

5.ADJUST THE LENS FOCUS

• According to the different installation distance,rotate the lens part clockwise or counterclockwise to adjust the projection clarity


6.PROJECTION SIZE

• Projection size=distance* 0.32M

7.MATCHING REMOTE CONTROL

• Install remote control battery

8.TEST THE LOGO PROJECTION EFFECT

After you understand how to install the gobo projector light, you can show below to learn more about the projector!!!!
