Projection Size For The Gobo Projector

How to check the projection size of different models of COLIFINE gobo projectors?

The size of the projector depends on the projection distance and different angles, we use the DS-FS model as an example, for example, you install a fixed distance of 5ft

Using a 13° lens, the projection size ratio is 1:0.22, the projection size = projection distance 5ft*0.22 =1.1ft
Using a 20° lens, the projection size ratio is 1:0.32, and the projection size = projection distance 5ft*0.32 =1.6ft
Using a 25° lens, the projection size ratio is 1:0.43, and the projection size = projection distance 5ft*0.43 =2.15ft
Using a 30° lens, the projection size ratio is 1:0.52, the projection size = projection distance 5ft*0.52 =2.6ft
Using a 45° lens, the projection size ratio is 1:0.87, the projection size = projection distance 5ft*0.87 =4.35ft
Using a 47° lens, the projection size ratio is 1:0.1, and the projection size = projection distance 5ft*1 =5ft

Our regular standard lens is a 20° lens with a ratio of 1:0.32

Please note: the smaller the degree of the lens, the clearer and brighter the projected picture, the larger the degree of the lens, the brightness of the projection will be weaker, the large-angle lens is more suitable for use in the dark environment and short distance, if the installation distance is fixed, the projection size has special requirements, please contact our professional customer service to give you better advice

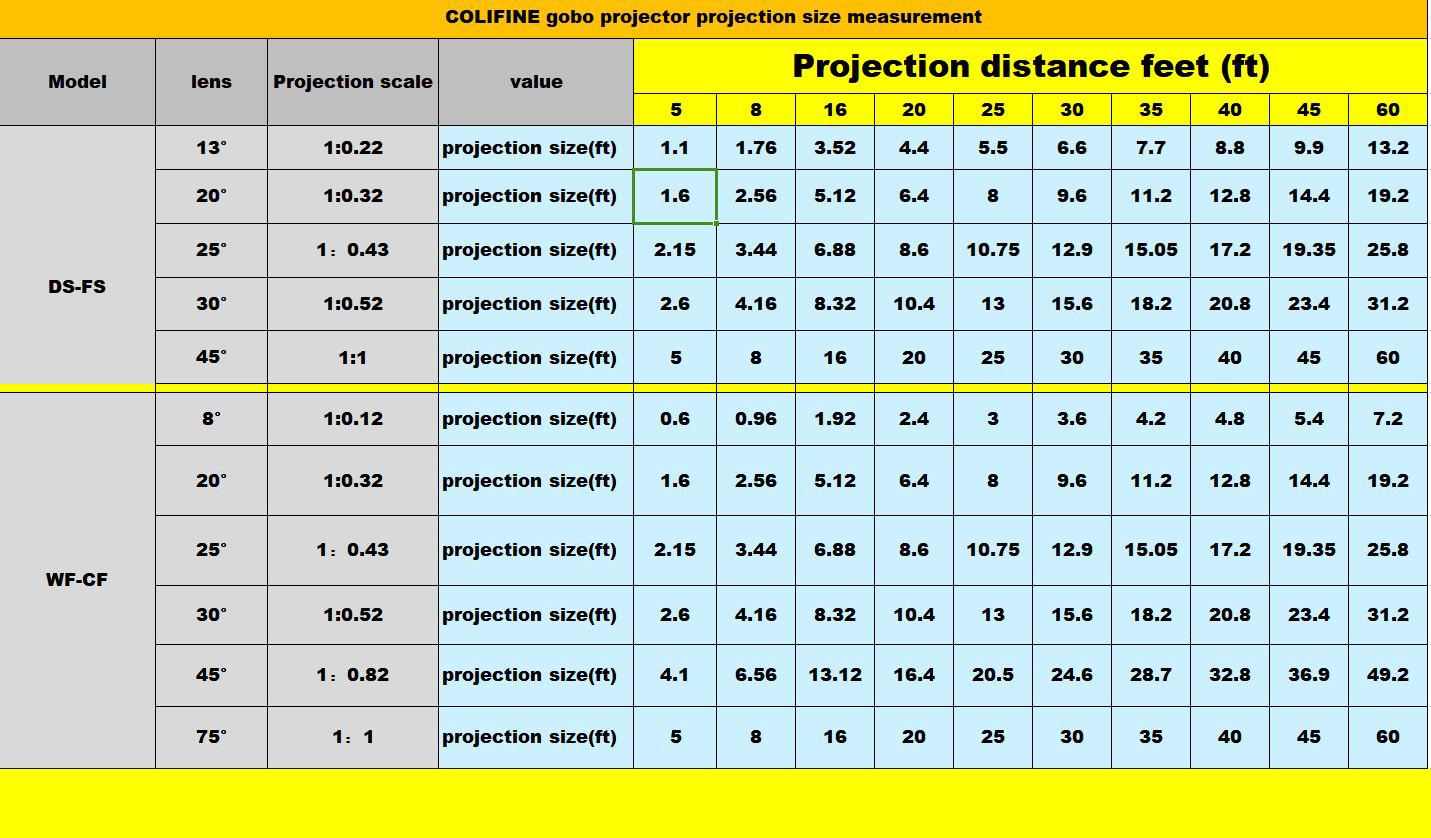

Please refer to the following pictures and tables

Please refer to the list and pictures below
