INSTALLATION
How To Install The Gobo Projector and use the logo projector light
- Yellow wire:Theneutral wire.
- Brown/Blue wire: Regardless of positive and negative pole
2.INSTALLATION MODE-THE GOBO GLASS LENS
- Take off the lens.
- Take off the circlip.
- Change the gobo carefullywith theright side towards theinside.(The logo on the frontfaces down)
3.LOGO PROJECTOR INSTALLATION
- lnsert the explosive screws into the wall screw holes
- Connect the base of the machine to the screw and screw on the nut
4.INSTALLATION MODE-THE GOBO PROJECTOR

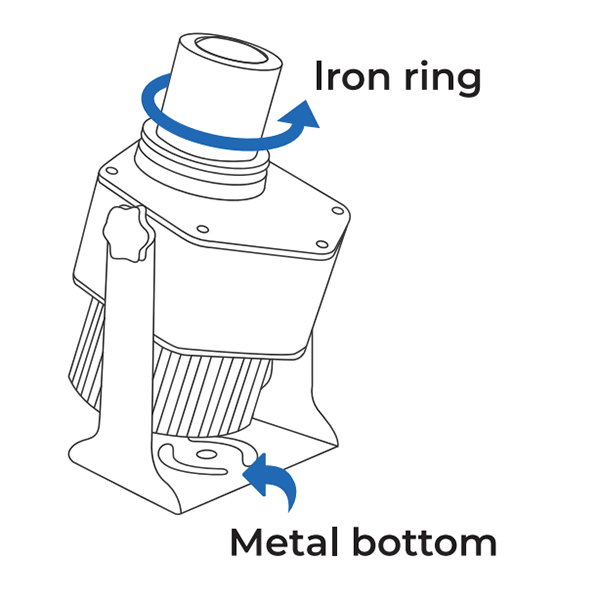

- Fix the metal bottom on the wall,and turn the projector to the right direction.
- Rotate the lens to get a clear picture,then fasten theiron ring to compact the rubber ring to assure-water resistance.
5.ADJUST THE LENS FOCUS
- According to the different installation distance,rotate the lens part clockwise or counterclockwise to adjust the projection clarity
6.PROJECTION SIZE
- Projection size=distance* 0.32M
7.MATCHING REMOTE CONTROL
- Install remote control battery
8.TEST THE LOGO PROJECTION EFFECT
